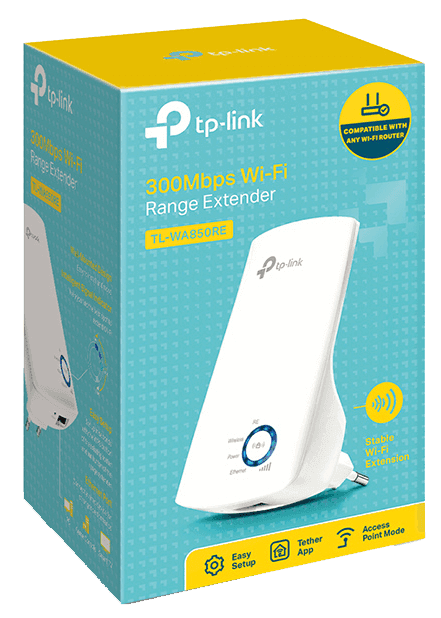

TP-LINK Wi-fi 300MBPS RANGE EXTENDER TL-WA850RE

Specifications Summary

Wireless Features

• Standards: IEEE 802.11n/g/b

• Frequency: 2.4 – 2.4835 GHz

• Max Speed:

  • 802.11n: Up to 300 Mbps (dynamic)

  • 802.11g: Up to 54 Mbps

  • 802.11b: Up to 11 Mbps

• Receive Sensitivity:

  • 270 Mbps: around –68 dBm @ 10 % PER

  • 130 / 108 / 54 Mbps: around –68 dBm @ 10 % PER

  • 11 Mbps: –85 dBm @ 8 % PER

  • 6 Mbps: –88 dBm @ 10 % PER

  • 1 Mbps: –90 dBm @ 8 % PER

• Transmit Power (EIRP): < 20 dBm

Hardware

• Interfaces: 1 × 10/100 Mbps Ethernet (RJ-45) port

• Buttons:

  • RE (Range Extender / WPS) button

  • Reset button

• Antenna: 2 internal antennas

• Power:

  • Input: 100–240 V ~ 50/60 Hz

  • Consumption: approx. 3 W

• Dimensions: 4.3 × 2.6 × 3.0 in (110.0 × 65.8 × 75.2 mm)

Management & Setup

• Modes: Range Extender and Access Point modes supported

• Setup: Quick WPS pairing, plus Web interface or TP-Link Tether App (with Night Mode LED control)

• Other Functions:

  • LED signal strength indicator (5 LEDs)

  • Wireless on/off, power scheduling, access control, MAC filtering, domain login function (tplinkextender.net)

Security

• Supports WEP (64/128/152-bit), WPA-PSK, and WPA2-PSK encryption
