KSh 26,250.00
Capacity: 1.2 TB
Interface: SAS 12 Gb/s (12G SAS)
Form Factor: 2.5-inch Small Form Factor (SFF), housed in a Basic Carrier (BC)
Workload Classification: Mission Critical (high-performance, enterprise-grade)
Spindle Speed: 10,000 RPM (10K)
Sector Format: Advanced format 512n (512 bytes per sector)
Transfer Rate: Up to 1.2 GB/s (external) Power Consumption:
Idle: ~4 W
Sequential read: ~6.4 W
Sequential write: ~5.5 W
Random R/W: ~7.1 W
| Capacity | 1.2 TB |
| Interface | SAS 12 Gb/s |
| Form Factor | 2.5″ SFF with Basic Carrier (BC) |
| Workload Level | Mission Critical |
| Spindle Speed | 10,000 RPM |
| Sector Format | 512n |
| Max Transfer Rate | ~1.2 GB/s |
| Power (Idle / Seq R / W) | 4 W / ~6.4 W read / ~5.5 W write |
| Random R/W Power | ~7.1 W |
| Dimensions (H × W × D) | ~14.6 × 21.9 × 22. |
Processor: Likely the Intel Xeon Silver 4208, an 8-core CPU clocked at 2.1 GHz (85 W TDP), common in pre-configured ML110 Gen10 models.
Processor Family: Part of Intel’s Xeon Scalable 4100 series.
Platform: Single-socket, 4.5 U tower server aimed at SMBs with enterprise-grade features.
Installed RAM: 16 GB DDR4 (commonly 1 × 16 GB RDIMM)
Memory Slots: 6 DIMM slots, supporting up to 192 GB of HPE DDR4 SmartMemory.
Memory Speed: Up to 2400 MT/s, depending on processor capabilities.
Embedded Controller: HPE Dynamic Smart Array S100i software RAID supporting both SATA and SAS.
Drive Bays:
Supports up to 8 Small Form Factor (SFF) hot-plug drives, or
4 Large Form Factor (LFF) drives depending on chassis configuration.
If configured with 1 TB SATA storage, it likely uses one or more SATA HDD(s) in the hot-plug bays.
PCIe Slots:
Up to 5 PCIe 3.0 slots for expansion cards.
Network:
Embedded dual-port 1 GbE NIC (HPE 332i).
USB & I/O:
Several USB ports (front and rear), VGA, iLO management port, optional serial port.
Management:
Includes HPE iLO (Integrated Lights-Out) for remote administration (iLO 5 on Gen10 systems).
Power Supply: Usually a 550 W ATX supply; models with 8 SFF bays often include an 800 W redundant power supply.

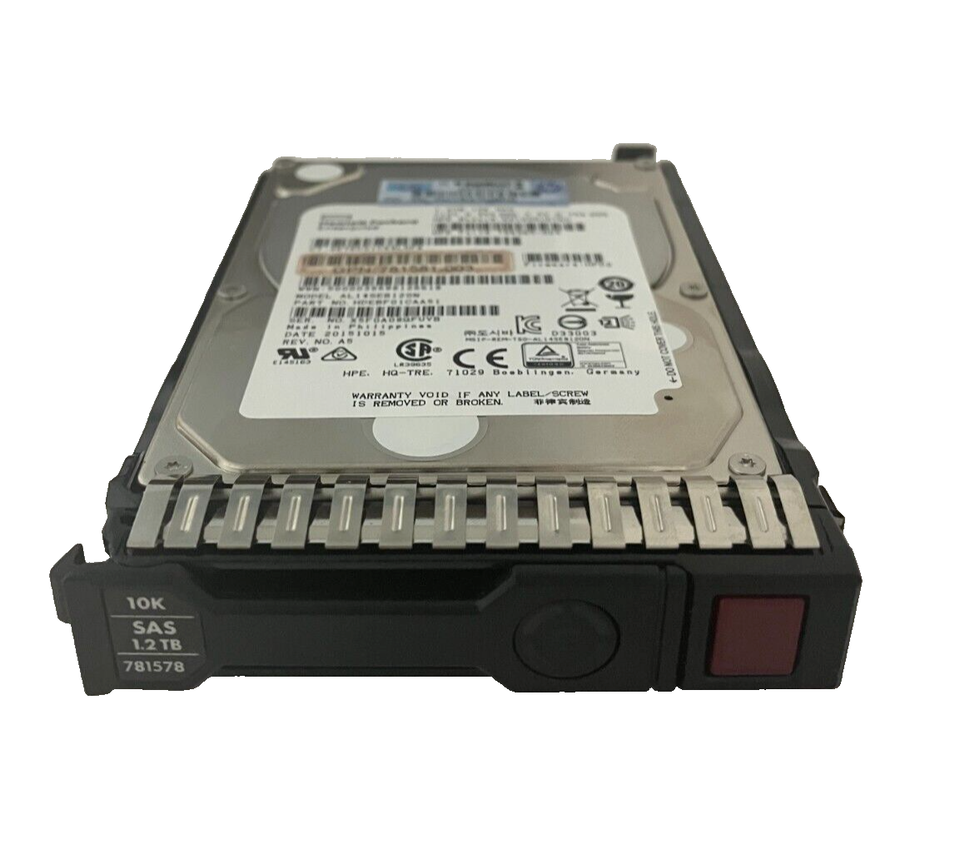

HPE 1.2 TB SAS 10K SFF SC DS HDD (872479‑B21)
The HPE 1.2TB SAS 10K SFF SC DS HDD (872479-B21) is a high-performance enterprise-level storage solution designed for compact HPE server environments. With its 12 Gb/s SAS interface and 10,000 rpm spindle speed, it delivers fast and reliable data access, ideal for virtualization, enterprise applications, and mixed workloads. The Dual-Port configuration ensures redundancy and high availability in mission-critical systems.
This drive is housed in an HPE hot-plug SmartDrive carrier, enabling tool-free installation and replacement while servers remain powered on. It also supports drive health monitoring via onboard LED indicators and integrated server management tools, making it ideal for IT teams needing robust uptime and maintenance flexibility in ProLiant Gen8/Gen9/Gen10 servers.
HPE 1.2TB SAS 10K SFF SC DS HDD (872479-B21) Key Features:
Model / Part Number: P00924-B21 — HPE 32GB (1×32GB) Dual Rank x4 DDR4-2933 Registered Smart Memory Kit
Capacity: 32 GB (single module)
Memory Type: DDR4 SDRAM, Registered (RDIMM) with ECC
Rank / Organization: Dual Rank, x4 organization
Speed: DDR4-2933 MT/s (equivalent to 2933 MHz), PC4-23466/PC4-23400 depending on listing
CAS Latency: CL21-21-21
Voltage: 1.2 V
Form Factor / Pins: 288-pin RDIMM
Dimensions: Approximately 3.5 × 7.8 × 0.75 inches (8.89 × 19.05 × 1.91 cm)
